Key takeaways
Chromatography peaks should be symmetrical, but real‑world chromatograms often show fronting, tailing, or even missing peaks. Most of these issues can be traced back to causes like column overloading, improper packing, mobile‑phase problems, or analyte‑column interactions, and fortunately, most are easy to fix. By identifying the source of asymmetry and applying the appropriate remedy, you can quickly restore peak shape and improve overall chromatographic performance. Learn more about our chromatography solutions here.
Introduction to tailing and fronting in chromatography
Peak leading and peak tailing are common forms of chromatographic peak distortion that indicate imbalance in how analytes interact with the column. Peak fronting typically occurs when the column becomes overloaded or when analytes bind too strongly to active sites, causing the leading edge of the peak to skew forward (Fig 1). Peak tailing, on the other hand, often results from secondary interactions or poor column conditioning, producing a stretched trailing edge that signals uneven elution.

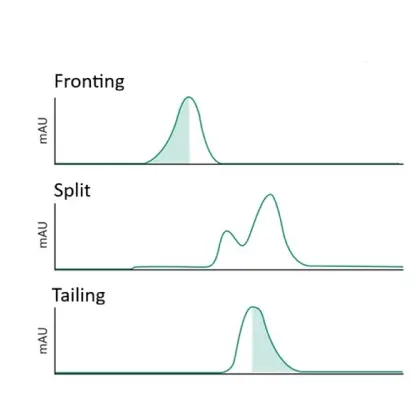

Fig 1. Diagrammatical representation of peak fronting, peak splitting and peak tailing in chromatography.
What is peak tailing in chromatography?
Peak tailing in chromatography occurs when a peak stretches out on its trailing edge, creating an asymmetrical shape instead of a sharp, symmetrical peak. It typically happens when analytes interact too strongly or unevenly with the stationary phase, often due to active sites, column overloading, or poor mobile‑phase conditions. Tailing can reduce resolution and make quantification less accurate.
Common causes of peak tailing
Common causes of peak tailing usually occur from unwanted interactions between the analyte and the stationary phase or from issues in sample loading or column condition.
Here are the most frequent causes of peak tailing:
- Active sites on the stationary phase (e.g., residual silanols on silica columns) can bind analytes too strongly.
- Column contamination or degradation, which creates uneven retention.
- Column overloading, where too much sample exceeds the stationary phase capacity.
- Poor mobile‑phase composition, especially insufficient buffering or incorrect pH.
- Interactions with metal surfaces in the flow path, affecting sensitive analytes.
- Improper sample solvent strength, causing analytes to stick or elute irregularly.
Effects of peak tailing on chromatographic performance
Peak tailing negatively affects chromatographic performance by reducing resolution and making quantification less accurate. It distorts peak symmetry, which can complicate integration and lower confidence in analytical results.
Here are key effects of peak tailing:
- Reduced resolution between closely eluting peaks, making it harder to separate analytes.
- Inaccurate quantitation because asymmetric peaks are more difficult to integrate consistently.
- Loss of sensitivity, especially for minor components masked by the tail.
- Longer analysis times if the tail drags into the next peak or baseline.
- Poor method robustness, as tailing often signals issues with column health or mobile‑phase conditions.
How to avoid peak tailing
You can avoid peak tailing by confirming that the column and mobile phase minimize unwanted interactions with the analyte (Table 1 and Table 2). Using well‑deactivated or end‑capped columns, maintaining proper pH and buffer strength, and matching sample solvent strength to the mobile phase all help prevent asymmetry. Regular column maintenance and avoiding overloading further reduce the risk of tailing and improve overall chromatographic performance.
Table 1. Tailing peaks: possible causes and remedies.
| Possible cause | Remedy |
| Column is ”underpacked” |
- Do a column performance test. Repack using higher flow rate - Use prepacked columns |
| Sample is not binding to column due to incorrect start buffer conditions | - Adjust pH. Check salt concentration in start buffer |
| Sample too viscous | - Dilute sample in start buffer |
| Column contaminated | - Clean using recommended procedures |
| Band broadening due to large volume in system | - Check modules, tubing, and connections for unnecessarily large volumes |
Table 2. Peaks are not detected or are too small: possible causes and remedies.
| Possible cause | Remedy |
| Sample absorbs poorly at chosen wavelength | - Use a different wavelength (e.g., 214 nm instead of 280 nm) |
| Excessive band broadening | - Check column packing. Repack if necessary or use prepacked columns |
| UV baseline rises with gradient because of buffer impurities | - Use high-quality reagents |
What is peak fronting in chromatography?
Peak fronting in chromatography occurs when the leading edge of a peak slopes forward, creating an asymmetrical shape that rises too quickly before reaching the apex. It typically results from column overloading or situations where the analyte interacts too weakly or inconsistently with the stationary phase. Fronting can reduce separation quality and make quantification less reliable.
Common causes of peak fronting
Peak fronting occurs when a chromatographic peak rises too sharply on its leading edge, usually because the analyte is overloaded or not retained strongly enough. It often indicates that the column capacity has been exceeded or that the sample or mobile‑phase conditions are causing premature elution.
Here are the most common causes of peak fronting:
- Column overloading, where too much analyte saturates the stationary phase and causes early breakthrough.
- Sample solvent too strong, which pushes the analyte ahead of the mobile phase and creates distorted peaks.
- Insufficient retention, often due to weak interactions between the analyte and stationary phase or incorrect mobile‑phase composition.
- Column deterioration, including damaged packing or channeling that disrupts uniform flow.
- Improper injection technique, such as too fast or inconsistent injections that disturb the chromatographic process.
Effects of peak fronting on chromatographic performance
Peak fronting reduces chromatographic performance by causing peaks to become distorted and less symmetrical, which makes separation and quantification more difficult. Because the peak leans forward, components may overlap, and integration becomes less reliable, especially for closely eluting analytes.
Here are the key effects of peak fronting:
- Reduced resolution, as the sharp leading edge can encroach on preceding peaks.
- Inaccurate quantitation, since asymmetrical peaks are harder to integrate consistently.
- Loss of linearity, particularly at higher concentrations where overloading exacerbates fronting.
- Compromised sensitivity, as distorted peaks can mask low-level analytes.
- Indication of system stress, signaling issues such as overloading, column wear, or improper sample solvent strength.
How to avoid peak leading
You can avoid peak fronting by reducing sample overload and checking that the analyte interacts appropriately with the stationary phase (Table 3). Using smaller injection volumes, matching the sample solvent to the mobile phase, and optimizing mobile‑phase strength all help maintain proper retention. Keeping the column in good condition and replacing worn packing material also minimizes disruption that can lead to fronting.
Table 3. Fronting peaks: possible causes and remedies
| Possible cause | Remedy |
| Column overloaded | - Decrease sample load and repeat |
| Column is ”overpacked” |
- Do a column performance test. Repack using lower flow rate - Use prepacked columns |
| Channeling in column | - Repack column using a thinner slurry of resin. Check column packing |
| Column contaminated | - Clean using recommended procedures |
Differences between peak tailing and peak fronting
Peak tailing and peak fronting are both forms of peak distortion in chromatography, but they occur on opposite sides of the peak. Peak tailing happens when the peak stretches out on the trailing edge due to overly strong or uneven interactions with the stationary phase. In contrast, peak fronting occurs when the leading edge rises too sharply, typically because the column is overloaded or retention is insufficient.
What is peak splitting in chromatography?
Peak splitting in chromatography occurs when a single analyte produces two or more distinct peaks instead of one unified peak. This usually happens when the sample experiences inconsistent interactions with the stationary phase, often due to issues such as poor injection technique or column irregularities. Split peaks reduce accuracy and make it difficult to interpret results, since they can mimic multiple components where only one exists.
How to reduce peak tailing and fronting?
You can reduce both peak tailing and peak fronting by optimizing sample loading, column condition, and mobile‑phase composition to ensure consistent interactions between the analyte and stationary phase. Using appropriate injection volumes, maintaining proper pH and buffer strength, and matching the sample solvent to the mobile phase all help keep peaks symmetrical. Regular column care—such as cleaning, replacing worn columns, and avoiding overload—further minimizes distortion and improves overall chromatographic performance.
HPLC Peak tailing and fronting
Peak tailing and peak fronting in HPLC refer to two common forms of peak distortion that affect chromatographic accuracy. Peak tailing occurs when a peak stretches out on its trailing edge due to overly strong or uneven interactions between the analyte and the stationary phase. Peak fronting is the opposite distortion. It occurs when the leading edge of a peak rises too sharply and is typically caused by column overloading or insufficient retention, which results in peaks that lean forward instead of forming a symmetrical shape.
Conclusion
In conclusion, peak tailing and peak fronting are common chromatographic distortions that signal issues with analyte-stationary phase interactions, sample loading, or column health. Both problems can compromise resolution, quantification accuracy, and overall method reliability if not addressed. By optimizing mobile‑phase conditions, managing injection volumes, and maintaining the column properly, analysts can significantly reduce these distortions and achieve more symmetrical, reliable peaks. Understanding these behaviors is essential for developing robust HPLC methods and ensuring high‑quality analytical results.
At Cytiva we are happy to help you along the way of column packing and troubleshooting – just give us a shout here!
Additional resources
- HiScale column tutorial: How to pack
- Application note: Develop your column packing methods based on pressure-flow measurements
- Everything in one place, find your resins and columns easy in Purify App.
- Request your own resin selection guide here.
- Connect with a community of purification scientists in Purify Club
FAQs
What do chromatogram peaks represent in chromatography?
In chromatography, peaks on a chromatogram represent the separated analytes as they elute from the column and reach the detector. Each peak corresponds to a specific compound, with its position and size reflecting retention time and concentration.
How could you identify peak tailing or peak fronting from a chromatogram?
You can identify peak tailing when the chromatogram shows a peak with a stretched or smeared trailing edge, making it asymmetrical to the right. Peak fronting appears when the leading edge rises too sharply, causing the peak to lean forward or skew to the left.
What was considered an acceptable tailing factor in HPLC?
An acceptable tailing factor in HPLC is typically ≤ 2.0, with many methods aiming for values closer to 1.0–1.5 for good peak symmetry. Regulatory guidelines often consider anything above 2.0 an indication of problematic peak distortion.
Why was peak tailing more common in HPLC than peak fronting?
Peak tailing was more common in HPLC because analytes often interacted too strongly with residual active sites on the stationary phase, especially silica-based columns. These secondary interactions occurred more frequently than the conditions that typically cause fronting, such as severe column overloading.
Could peak tailing and peak fronting occur in the same chromatogram?
Yes, peak tailing and peak fronting can appear in the same chromatogram if different analytes experience different types of interactions or loading effects. One compound may tail while another fronts, depending on their individual chemistry and how they interact with the column and mobile phase.
